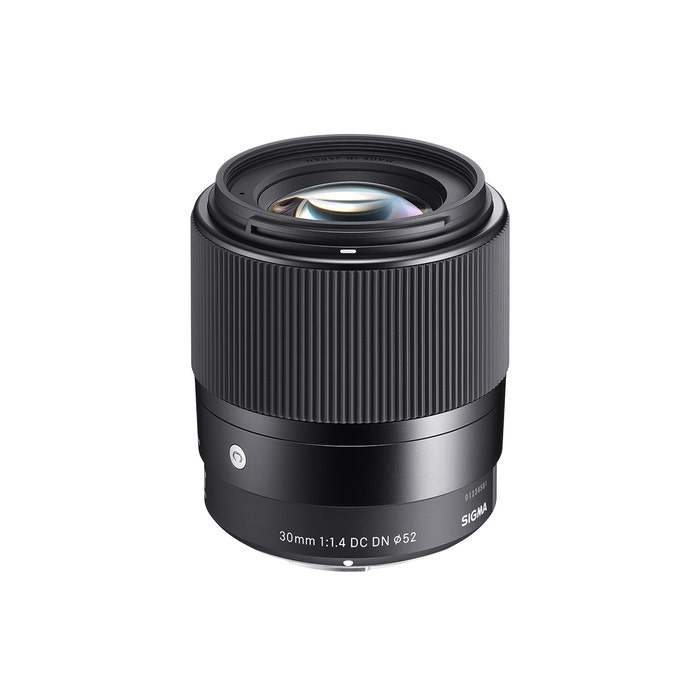

SIGMA 30mm F1.4
DC DN | Contemporary
• Combine une performance optique exceptionnelle et un design compact
• Propose un nouveau zoom standard F1.4 pour les appareils photo sans miroir
• NOUVEAU pour la configuration Canon EF-M
• Premier objectif F1.4 pour les systèmes Micro Four Thirds et Sony à monture E
• Le format compact de la gamme Contemporary et la qualité d’image de la gamme Art
| Ligne | Contemporary |
|---|---|
| Youtube Videos | |
| Instagram Widget | |
| Formule optique | 9 Elements in 7 Groups |
| Lens Type | Standard |
| Angle de vue | 50.7º |
| Diaphragme | 9 (Rounded Diaphragm) |
| Ouverture minimale | F16 |
| Distance minimale de mise au point | 30 cm |
| Rapport de reproduction maximal | 1:7 |
| Dimensions (diameter x length) | Sony E-mount ⌀ 64.8 mm x 73.3 mm |
| Poids (gramme) | 264 |
| Diamètre de filtre | 52mm |
| Edition number | C016 |
| Accessoires | Hood (LH586-01) supplied |
| EAN | Sony E-mount 085126302658 |
LENS CONSTRUCTION
GEOMETRICAL MTF Chart
DIFFRACTION MTF CHART
Linear focus / Non-linear focus (for L-Mount only）
A focus movement method of interchangeable lenses for mirrorless cameras (DN lens) in relation to the rotational angle of the focus ring during manual focusing.
With "non-linear focus," the amount of focal point movement varies depending on the focus ring rotational speed.
With linear focus, if the focus ring rotational angle is the same, the amount of focal point movement remains the same regardless of the focus ring rotational speed.
Compatible with Lens Aberration Correction
Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.
*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with 'ON' or 'OFF' in the camera menu, please set all aberration correction functions to 'ON'(AUTO).
High-precision, rugged brass bayonet mount
The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens.
Mount with Dust and Splash Resistant Structure
The lens mount incorporates rubber sealing to protect the mount from dust and water drops.
Rounded diaphragm
The polygonal shape of a conventional iris dia phragm causes out-of-focus light points to appear polygonal. A rounded diaphragm is designed to pro duce rounded out-of-focus light points when opened to near maximum aperture. This creates attractive bokeh effects in many situations, such as when pho tographing a subject against an out-of-focus surface of water from which light is being reflected.
