Mount Converter MC-31
• Allows PL-Mount lenses to be used with L-Mount cameras such as the SIGMA fp
• Shim adjustments on both sides
• All Metal Constructions
• Tripod Socket
• Secure lens mounting
• Luminous paint on upper part markings
SIGMA MOUNT CONVERTER MC-31 is a converter that allows PL mount lenses to be used on L-Mount cameras. By using SIGMA MOUNT CONVERTER MC-31, users can use PL mount cine lenses, which are widely used in the filmmaking industry, on the SIGMA fp and other L-Mount cameras.
Accessories: Cap, Support foot, Hex wrench, Screwdriver, Mount lock screw, L-mount shim

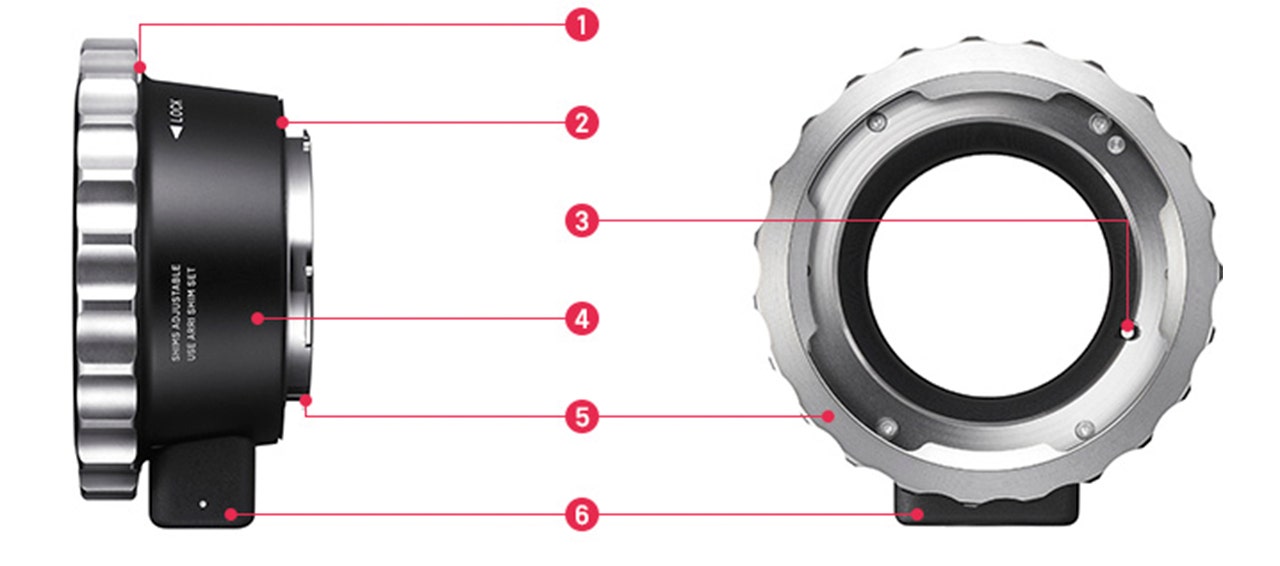

MC-31 has shim adjustments on two points of the mount. Adjustments can be made with a shim kit (Supplied) on the camera side of the mount (2), or a shim for ARRI digital cameras on the lens side (1).
All-metal construction for excellent durability
With an aluminum-alloy body (4) and strong brass mount and locking ring (5), MC-31 boasts excellent durability.
It is also designed to be secured on the mount of the SIGMA fp with a screw thread (3), ensuring an even more secure connection between the lens and the camera. This allows users to shoot steady without the lens rattling even after the long-term use.
The removable support foot (6) allows MC-31 to be attached to a tripod or other filmmaking accessories such as a camera cage.
Suitable for various shooting conditions
With the screw thread removed, the stopper of the locking ring is released. This makes it possible to use MC-31 with a PL mount lens that requires tighter mounting than the MC-31’s specifications, allowing the lens to lock securely in place on the converter.
The markings on the upper part of the converter are in the same luminous paint as the one used for SIGMA CINE LENS, helping make it easier to replace or adjust a lens in the dark.
|Type accessoire||Mount Converter|
⌀ 84.4 mm / 3.3 in.
* Appearance and specifications are subject to change. L-Mount is a registered trademark of Leica Camera AG
